• It is one of the basic and important types of Logic Circuits.


  • Combinational circuits are digital logic circuits that produce output based solely on the current input values, without any consideration of previous inputs or internal memory.


  • These circuits are composed of logic gates and perform specific logical operations on input signals to generate output signals.
  • It does not have any memory elements or feedback loops.
  • The output is determined by the logic function defined by the circuit’s inputs and the gates used in the circuit.
  • Combinational circuits are essential circuits or components in various digital systems, including processors, arithmetic units, data converters, and many other applications where logical operations and data manipulation are required.
  • The common types of logic gates used in combinational circuits include AND gates, OR gates, NOT gates, XOR gates, and NAND gates. Logic gates are interconnected to form more complex circuits to perform specific functions.

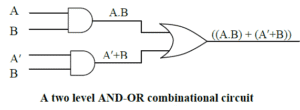

Structure of Combinational Circuits

  • The basic building blocks of a combinational circuit are logic gates, such as AND gates, OR gates, NOT gates, XOR gates, etc. These gates perform logical operations on one or more inputs and produce an output based on the predefined logic function.
  • The specific structure of a combinational circuit can vary depending on its complexity and the desired logic function.
  • Larger combinational circuits may have multiple layers of gates and more complex interconnections. However, the fundamental principles of input signals, logic gates, intermediate signals, interconnections, and output signals remain the same.
  • Here is a general structure of a combinational circuit:
    1. Input Signals: The circuit has one or more input signals, which represent the binary values provided to the circuit for processing.
    2. Logic Gates: The input signals are connected to the inputs of various logic gates, such as AND gates, OR gates, NOT gates, XOR gates, etc. These gates perform logical operations on the input signals to generate intermediate signals.
    3. Intermediate Signals: The outputs of the logic gates are connected to intermediate signals within the circuit. These intermediate signals carry the results of the logical operations performed by the gates.
    4. Interconnections: The intermediate signals are interconnected within the circuit, forming a network of connections between different gates and signals. These interconnections determine the flow of signals through the circuit.
    5. Output Signals: The intermediate signals are finally connected to the output signals of the circuit. The output signals represent the result of the logical operations performed by the circuit and are derived solely from the current input values.

Examples of Combinational Circuits

  • Here are some commonly used types of combinational circuits:
    1. Multiplexers (MUX)/Data Selectors: Multiplexers are used to select one of many input signals and pass it to the output. They have multiple input lines, one or more select lines, and a single output line. The select lines determine which input signal is transmitted to the output.
    2. Demultiplexers (DEMUX): Demultiplexers perform the reverse operation of multiplexers. They take a single input line and multiple select lines and distribute the input signal to one of the output lines based on the select lines.
    3. Encoders: Encoders are used to convert multiple input signals into a smaller set of output signals. They assign a unique code or address to each combination of input signals. For example, a 4-to-2 encoder takes 4 input lines and produces 2 output lines based on the active input.
    4. Decoders: Decoders perform the opposite function of encoders. They take a few select lines as input and activate a specific output line based on the input combination. Decoders are commonly used to enable specific operations or components in a digital system.
    5. Adders: Adders are used to perform arithmetic addition operations on binary numbers. The most common adder is the binary full adder, which takes three input bits (two numbers to be added and a carry-in) and produces a sum bit and a carry-out bit.
    6. Comparators: Comparators compare two binary numbers and produce output signals indicating the relationship between the numbers (greater than, less than, or equal). They are commonly used in arithmetic and control circuits.


  • Combinational circuits are widely used in various digital systems, including computers, calculators, and communication devices.
